CPOS and PAX CC Readers
Step 1: Log in to ASBWorks
Step 2: Access POS Admin Settings

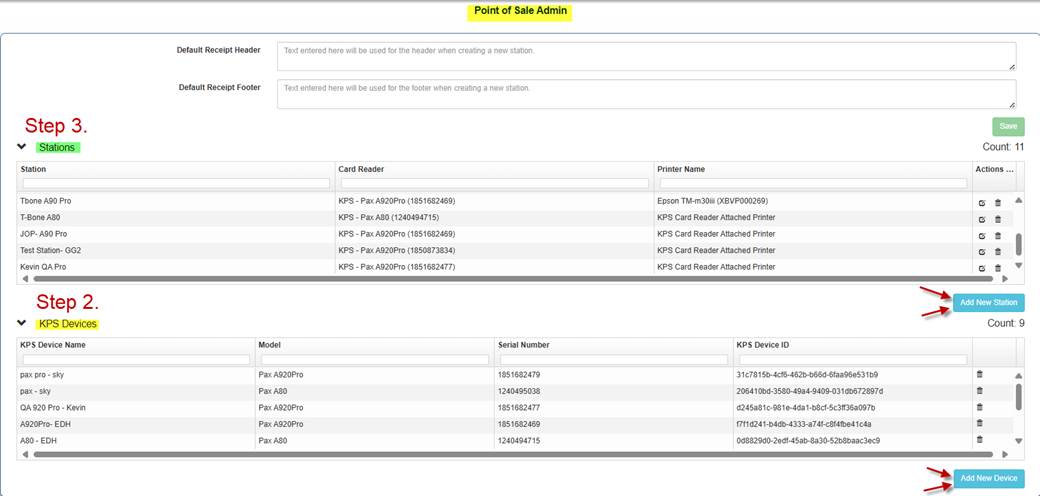

- From the home dashboard, go to Admin Tab and scroll down to Point of Sale Admin

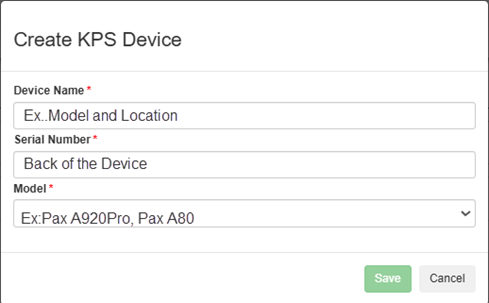

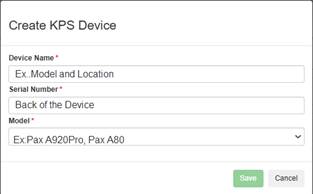

- Click on the Add New Device in the KPS Device Section.
*This needs to be done first, so when it is time to Add New Station, it will populate in the drop down for KPS Device*
- Input the name of the device…ex: A80 Student Store.
- model number…ex (Pax A920Pro, Pax A80)

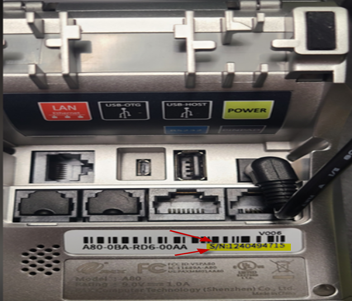

- serial number: it is on the back of the device.
Step 3: Create New POS Station

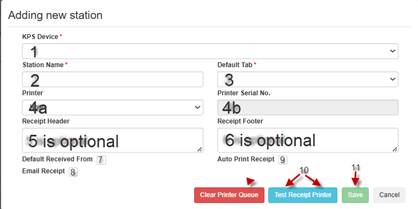

- Click on Add New Station Button in the Station Section
- Fill in the blanks that are applicable in the Adding New Station pop-up box.
- 1: Chose KPS device name from the drop that was added in KPS Devices
- 2: Name POS Station; ex: Student Store, ASB Office
- 3: Choose an option of what the POS sales the most, Item, Fundraiser and Accounts
- 4a: Printer Default (None), if this option stays selected, it will print from the PAX CC Reader, or you can choose the Epson TM-m30III
- 4b: If you decide to choose the Epson TM-30mIII, you will need to input the S/N from the Epson Printer that on the back of the printer behind the back plate.
- 5: Receipt header is optional.
- 6: Receipt footer is optional.
- 7: Default receive from if checked off will automatically put the cursor in the From section to input the customer’s name
- 8: If checked, then the email section will be automatically filled out if available. You still need to hit the send button.
- 9: If checked, then the receipt will automatically be printed from the PAX cc reader or Epson TM-m30III.
- 10: Before you can save your station, you would need to make sure your receipt printer is working by hitting the Test Receipt Printer button.
- 11: Hit Save to save your new station setting for the CPOS.
